ME4812B, ME4812BB, N-Channel 30-V(D-S) MOSFET

ME4812B/ME4812B-G N-Channel 30-V (D-S) MOSFET Integrated Schottky Diode GENERAL .
The ME4812B is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology.

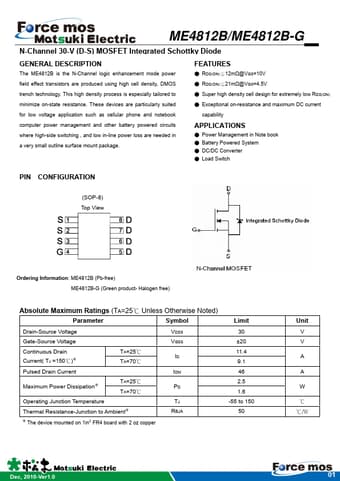

datasheet Preview Page 1 from Datasheet4u.com

ME4812BB-Matsuki.pdf

ME4812B Datasheet Preview — This datasheet PDF includes multiple part numbers: ME4812B, ME4812BB. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ME4812B, ME4812BB

Manufacturer:

Matsuki

File Size:

636.19 KB

Description:

N-Channel 30-V(D-S) MOSFET

Note:

This datasheet PDF includes multiple part numbers: ME4812B, ME4812BB.
Please refer to the document for exact specifications by model.

Features

* RDS(ON)≦12mΩ@VGS=10V
* RDS(ON)≦21mΩ@VGS=4.5V
* Super high density cell design for extremely low RDS(ON)

Applications

* Power Management in Note book
* Battery Powered System
* DC/DC Converter
* Load Switch PIN CONFIGURATION (SOP-8) Top View Ordering Information: ME4812B (Pb-free) ME4812B-G (Green prod
