ME4812B-G - N-Channel 30-V(D-S) MOSFET

This page provides the datasheet information for the ME4812B-G, a member of the ME4812BB N-Channel 30-V(D-S) MOSFET family.

Datasheet Summary

Description

The ME4812B is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology.

This high density process is especially tailored to minimize on-state resistance.

Features

  • RDS(ON)≦12mΩ@VGS=10V.
  • RDS(ON)≦21mΩ@VGS=4.5V.
  • Super high density cell design for extremely low RDS(ON).
  • Exceptional on-resistance and maximum DC current capability.

📥 Download Datasheet

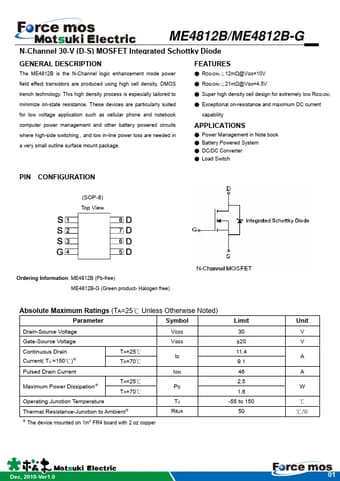

Datasheet preview – ME4812B-G

Datasheet Details

Part number ME4812B-G
Manufacturer Matsuki
File Size 636.19 KB
Description N-Channel 30-V(D-S) MOSFET
Datasheet download datasheet ME4812B-G Datasheet
Additional preview pages of the ME4812B-G datasheet.

📁 Similar Datasheet

  • ME4839W - WHITE SIDE BACKLIGHT (Micro Electronics)
  • ME4856 - N-Channel 30C MOSFET (VBsemi)
  • ME4-H2 - Hydrogen Gas Sensor (Winsen)
  • ME4-NH3 - Ammonia Gas Sensor (Winsen)
  • ME4-SO2 - Electrochemical Sulfur Dioxide Sensor (Winsen)
  • ME401C - DC-DC Converter (Microne)
  • ME4052 - High-voltage dual-cell linear charger (ChipSourceTek)
  • ME4054 - Standalone Linear Li-Ion Battery Charger (Microne)
  • ME4054B-N - 500mA Lithium Ion Battery Linear Charger (ChipSourceTek)
  • ME4054B-N - 500mA Lithium Ion Battery Linear Charger (Microne)
Other Datasheets by Matsuki
  • ME4812B - N-Channel 30-V(D-S) MOSFET
  • ME4812 - N-Channel 30-V(D-S) MOSFET
  • ME4812-G - N-Channel 30-V(D-S) MOSFET
  • ME4856 - N-Channel 30-V(D-S) MOSFET
  • ME4856-G - N-Channel 30-V(D-S) MOSFET
  • ME4894 - N-Channel 30-V(D-S) MOSFET
  • ME4894-G - N-Channel 30-V(D-S) MOSFET
  • ME40P03T - P-Channel MOSFET

Full PDF Text Transcription

Click to expand full text
ME4812B/ME4812B-G N-Channel 30-V (D-S) MOSFET Integrated Schottky Diode GENERAL DESCRIPTION The ME4812B is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench technology. This high density process is especially tailored to minimize on-state resistance. These devices are particularly suited for low voltage application such as cellular phone and notebook computer power management and other battery powered circuits where high-side switching , and low in-line power loss are needed in a very small outline surface mount package. FEATURES ● RDS(ON)≦12mΩ@VGS=10V ● RDS(ON)≦21mΩ@VGS=4.
