ME4812 N-Channel 30-V(D-S) MOSFET

ME4812 Description

ME4812/ME4812-G N-Channel 30-V(D-S) MOSFET, ESD Protection GENERAL .
The ME4812 is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density , DMOS trench technology integr.

ME4812 Features

* Integrated Schottky diode
* RDS(ON)≦13mΩ@VGS=10V
* RDS(ON)≦21.5mΩ@VGS=4.5V
* Super high density cell design for extremely low RDS(ON)

ME4812 Applications

* Power Management in Note book
* Battery Powered System
* DC/DC Converter low side switching
* Load Switch (SOP-8) Top View

📥 Download Datasheet

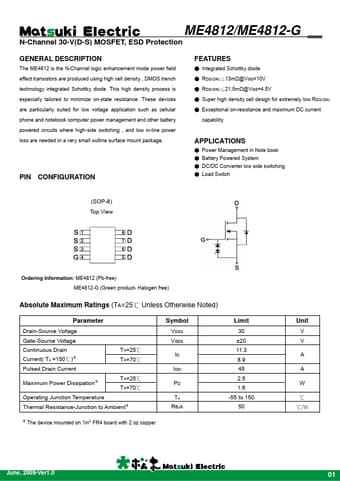

Preview of ME4812 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ME4812
Manufacturer
Matsuki
File Size
848.00 KB
Datasheet
ME4812-Matsuki.pdf
Description
N-Channel 30-V(D-S) MOSFET
