TC1133, TC1132 - Consumer Grade Temperature to Voltage Converters

TC1133 Description

www.DataSheet4U.com TC1132 TC1133 Consumer Grade Temperature-to-Voltage Converters .
The TC1132/33 temperature sensors furnish a linearized output voltage directly proportional to measured temperature.

TC1133 Features

* s s s s s s Linearized Temperature-to-Voltage Converters Direct Centigrade Output Voltage Scaling (TC1133) Wide Temperature Measurement Range (TC1132)
* 20°C to +125°C Excellent Temperature Converter Linearity . . 0.8°C Over Temperature High Temperature Converter Accuracy at 25°C Guaranteed

TC1133 Applications

* APPLICATIONS s s s s s Power Supply Thermal Shut-Down Temperature-Controlled Fans Temperature Measurement/Instrumentation Temperature Regulators Consumer Electronics ORDERING INFORMATION Output Voltage At 25°C 750mV 750mV 250mV 250mV Part No. TC1132VNB
* TC1132VZB TC1133VNB TC1133VZB Package

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TC1133, TC1132. Please refer to the document for exact specifications by model.

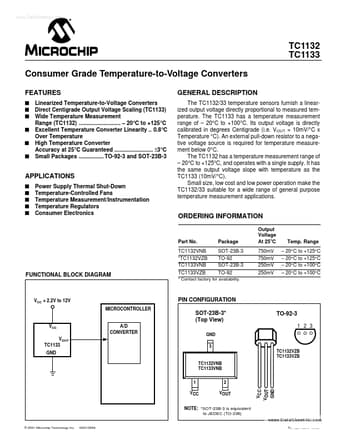

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TC1133, TC1132
Manufacturer
Microchip ↗ Technology
File Size
89.26 KB
Datasheet
TC1132_MicrochipTechnology.pdf
Description
Consumer Grade Temperature to Voltage Converters
Note
This datasheet PDF includes multiple part numbers: TC1133, TC1132.
Please refer to the document for exact specifications by model.
