24AA08 Datasheet - Microchip

24AA08 - 8K I2C Serial EEPROM

The Microchip Technology Inc.

24XX08(1) is an 8-Kbit Electrically Erasable PROM (EEPROM).

The device is organized as four blocks of 256 x 8-bit memory with a two-wire serial interface.

Its low-voltage design permits operation down to 1.7V with standby and active currents of only 1 µA and 1 mA, respe

24AA08 Features

* Single Supply with Operation down to 1.7V for 24AA08 and 24FC08 Devices, 2.5V for 24LC08B Devices

* Low-Power CMOS Technology: - Read current 1 mA, maximum - Standby current 1 µA, maximum (I-temp.)

* Two-Wire Serial Interface, I2C Compatible

* Schmitt Trigger Inputs

24AA08-Microchip.pdf

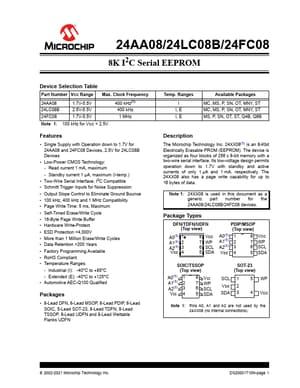

Preview of 24AA08 PDF
24AA08 Datasheet Preview Page 2 24AA08 Datasheet Preview Page 3

Datasheet Details

Part number:

24AA08

Manufacturer:

Microchip ↗

File Size:

929.73 KB

Description:

8k i2c serial eeprom.
