24AA08H Datasheet - Microchip

8K I2C Serial EEPROM

24AA08H Features

* Single Supply with Operation Down to 1.7V for 24AA08H Devices, 2.5V for 24LC08BH Devices

* Low-Power CMOS Technology: - Read current 1 mA, maximum - Standby current 1 µA, maximum (I-temp.)

* Two-Wire Serial Interface, I2C Compatible

* Schmitt Trigger Inputs for Nois

24AA08H General Description

The Microchip Technology Inc. 24XX08H(1) is an 8-Kbit Electrically Erasable PROM (EEPROM). The device is organized as one block of 1024 x 8-bit memory with a two-wire serial interface. Its low-voltage design permits operation down to 1.7V, with standby and active currents of only 1 µA and 1 mA, resp.

24AA08H Datasheet (653.84 KB)

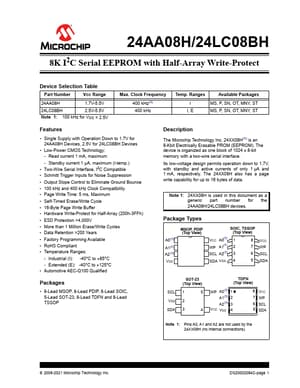

24AA08H Datasheet Preview — Preview of 24AA08H PDF

Datasheet Details

Part number:

24AA08H

Manufacturer:

Microchip ↗

File Size:

653.84 KB

Description:

8k i2c serial eeprom.
24AA08H/24LC08BH 8K I2C Serial EEPROM with Half-Array Write-Protect Device Selection Table Part Number VCC Range 24AA08H 1.7V-5.5V 24LC08BH 2.5.
