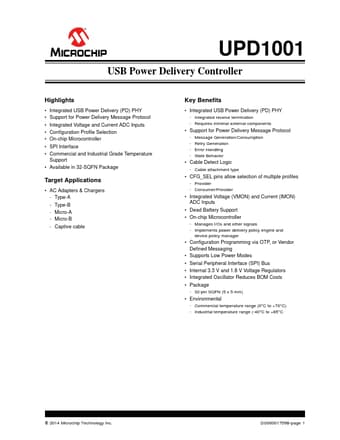

UPD1001 USB Power Delivery Controller Highlights • Integrated USB Power Delivery (PD) PHY • Support for Power Delivery Message Protocol • Integrated Voltage and Current ADC Inputs • Configuration Profile Selection • On-chip Microcontroller • SPI Interface • Commercial and Industrial Grade Temperature Support • Available in 32-SQFN Package Target Applications • AC Adapters & Chargers - Type-A - Type-B - Micro-A - Micro-B - Captive cable Key Benefits • Integrated USB Power Delivery (PD) PHY - Integrated receive termination - Requires minimal external components • Support for Power Delivery Message Protocol - Message Generation/Consumption - Retry Generation - Error Handling - State Behavior • Cable Detect Logic - Cable attachment type • CFG_SEL pins allow selection of multiple profiles - P
