UPD120N33T1B Datasheet, Regulator, Renesas

UPD120N33T1B Features

• Regulator
• Output current: 0.3 A
• On-chip overcurrent protection circuit
• On-chip thermal protection circuit
• Small circuit operation current: 60 μA TYP. Appli

PDF File Details

Part number:

UPD120N33T1B

Manufacturer:

Renesas ↗

File Size:

226.24kb

Download:

📄 Datasheet

Description:

Three-terminal low-dropout positive-voltage regulator. The μPD120Nxx series provides low-voltage output regulators with the output current capacitance of 0.3 A. The output voltage varies a

UPD120N33T1B Application

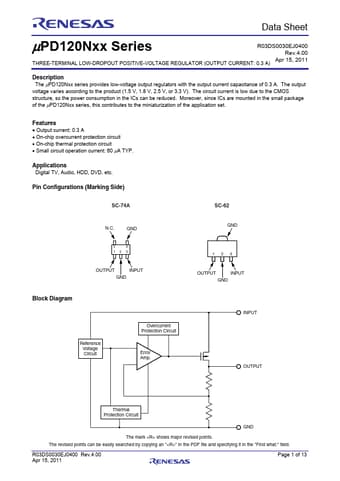

• Applications Digital TV, Audio, HDD, DVD, etc. Pin Configurations (Marking Side) SC-74A SC-62 N.C. GND GND Block Diagram 54 123 OUTPUT INPU
