UPD120N18T1B - THREE-TERMINAL LOW-DROPOUT POSITIVE-VOLTAGE REGULATOR

This page provides the datasheet information for the UPD120N18T1B, a member of the UPD120N15TA THREE-TERMINAL LOW-DROPOUT POSITIVE-VOLTAGE REGULATOR family.

Datasheet Summary

Description

The μPD120Nxx series provides low-voltage output regulators with the output current capacitance of 0.3 A.

voltage varies according to the product (1.5 V, 1.8 V, 2.5 V, or 3.3 V).

The circuit current is low due to the CMOS structure, so the power consumption in the ICs can be reduced.

Features

Output current: 0.3 A.
On-chip overcurrent protection circuit.
On-chip thermal protection circuit.
Small circuit operation current: 60 μA TYP.

Datasheet Details

Part number	UPD120N18T1B
Manufacturer	Renesas
File Size	226.24 KB
Description	THREE-TERMINAL LOW-DROPOUT POSITIVE-VOLTAGE REGULATOR
Datasheet	UPD120N18T1B Datasheet

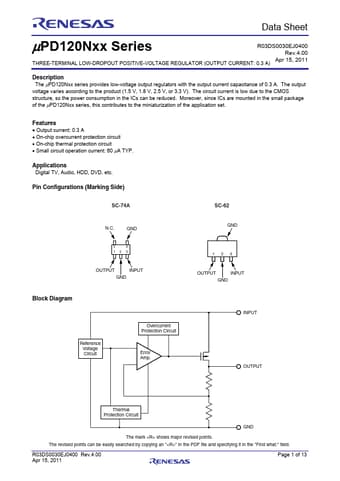

Additional preview pages of the UPD120N18T1B datasheet.

📁 Similar Datasheet

UPD120N18T1B - THREE-TERMINAL LOW-DROPOUT POSITIVE-VOLTAGE REGULATOR (NEC)

UPD120N18TA - THREE-TERMINAL LOW-DROPOUT POSITIVE-VOLTAGE REGULATOR (NEC)

UPD120N15T1B - THREE-TERMINAL LOW-DROPOUT POSITIVE-VOLTAGE REGULATOR (NEC)

UPD120N15TA - THREE-TERMINAL LOW-DROPOUT POSITIVE-VOLTAGE REGULATOR (NEC)

UPD120N25T1B - THREE-TERMINAL LOW-DROPOUT POSITIVE-VOLTAGE REGULATOR (NEC)

UPD120N25TA - THREE-TERMINAL LOW-DROPOUT POSITIVE-VOLTAGE REGULATOR (NEC)

UPD120N33T1B - THREE-TERMINAL LOW-DROPOUT POSITIVE-VOLTAGE REGULATOR (NEC)

UPD120N33TA - THREE-TERMINAL LOW-DROPOUT POSITIVE-VOLTAGE REGULATOR (NEC)

UPD120Nxx - THREE-TERMINAL LOW-DROPOUT POSITIVE-VOLTAGE REGULATOR (NEC)

UPD12115 - MOS INTEGRATED CIRCUIT (NEC)

Full PDF Text Transcription

Click to expand full text

Preliminary Data Sheet μPD120Nxx Series R03DS0030EJ0400 Rev.4.00 THREE-TERMINAL LOW-DROPOUT POSITIVE-VOLTAGE REGULATOR (OUTPUT CURRENT: 0.3 A) Apr 15, 2011 Description The μPD120Nxx series provides low-voltage output regulators with the output current capacitance of 0.3 A. The output voltage varies according to the product (1.5 V, 1.8 V, 2.5 V, or 3.3 V). The circuit current is low due to the CMOS structure, so the power consumption in the ICs can be reduced. Moreover, since ICs are mounted in the small package of the μPD120Nxx series, this contributes to the miniaturization of the application set. Features • Output current: 0.3 A • On-chip overcurrent protection circuit • On-chip thermal protection circuit • Small circuit operation current: 60 μA TYP.
