UPD120N33TA Datasheet - Renesas

UPD120N33TA THREE-TERMINAL LOW-DROPOUT POSITIVE-VOLTAGE REGULATOR

The μPD120Nxx series provides low-voltage output regulators with the output current capacitance of 0.3 A. The output voltage varies according to the product (1.5 V, 1.8 V, 2.5 V, or 3.3 V). The circuit current is low due to the CMOS structure, so the power consumption in the ICs can be reduced. More.

UPD120N33TA Features

* Output current: 0.3 A

* On-chip overcurrent protection circuit

* On-chip thermal protection circuit

* Small circuit operation current: 60 μA TYP. Applications Digital TV, Audio, HDD, DVD, etc. Pin Configurations (Marking Side) SC-74A SC-62 N.C. GND GND Block D

UPD120N33TA Datasheet (226.24 KB)

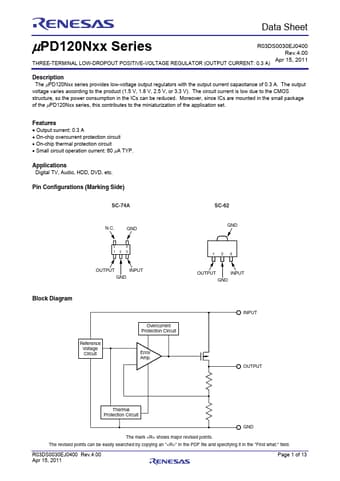

Preview of UPD120N33TA PDF
UPD120N33TA Datasheet Preview Page 2 UPD120N33TA Datasheet Preview Page 3

Datasheet Details

Part number:

UPD120N33TA

Manufacturer:

Renesas ↗

File Size:

226.24 KB

Description:

Three-terminal low-dropout positive-voltage regulator.
