UPD120N18TA

THREE-TERMINAL LOW-DROPOUT POSITIVE-VOLTAGE REGULATOR

UPD120N18TA Features

* Output current: 0.3 A

* On-chip overcurrent protection circuit

* On-chip thermal protection circuit

* Small circuit operation current: 60 µA TYP. APPLICATIONS Digital TV, Audio, HDD, DVD, etc. PIN CONFIGURATION (Marking Side) SC-74A N.C. GND 54 123 OUTPUT INP

UPD120N18TA General Description

The µPD120Nxx series provides low-voltage output regulators with the output current capacitance of 0.3 A. The output voltage varies according to the product (1.5 V, 1.8 V, 2.5 V, or 3.3 V). The circuit current is low due to the CMOS structure, so the power consumption in the ICs can be reduced. More.

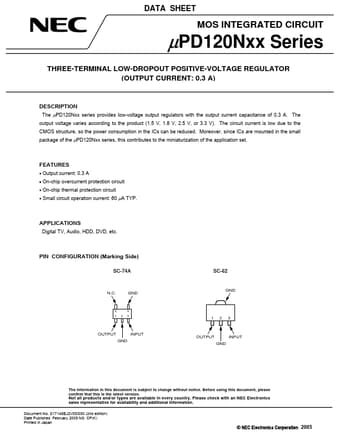

UPD120N18TA Datasheet (157.38 KB)

Preview of UPD120N18TA PDF

Datasheet Details

Part number:

UPD120N18TA

Manufacturer:

NEC

File Size:

157.38 KB

Description:

Three-terminal low-dropout positive-voltage regulator.
