APT100GT60B2R - Thunderbolt IGBT

APT100GT60B2R Description

APT100GT60B2R(G) www.DataSheet4U.com APT100GT60LR(G) 600V, 100A, VCE(ON) = 2.1V Typical Thunderbolt IGBT® The Thunderbolt IGBT® is a new generation o.

APT100GT60B2R Features

* Low Forward Voltage Drop
* Low Tail Current
* Integrated Gate Resistor Low EMI, High Reliability
* RoHS Compliant G E
* RBSOA and SCSOA Rated
* High Frequency Switching to 50KHz
* Ultra Low Leakage Current G C E G C E C Maximum Ratin

📥 Download Datasheet

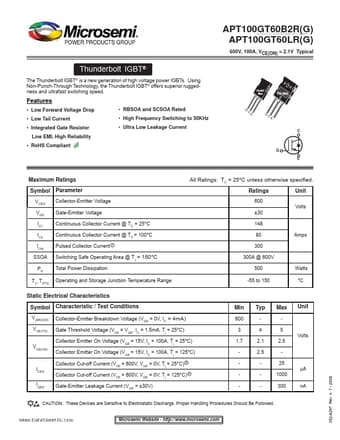

Preview of APT100GT60B2R PDF
datasheet Preview Page 2 datasheet Preview Page 3
