APT100GT60LRG - Thunderbolt IGBT

Product Overview

Microsemi Corporation

Part number	APT100GT60LRG
Manufacturer	Microsemi Corporation
File Size	191.26 KB
Description	Thunderbolt IGBT
Datasheet	APT100GT60LRG Datasheet
Note	This datasheet PDF includes multiple part numbers: APT100GT60LRG, APT100GT60B2R. Please refer to the document for exact specifications by model.

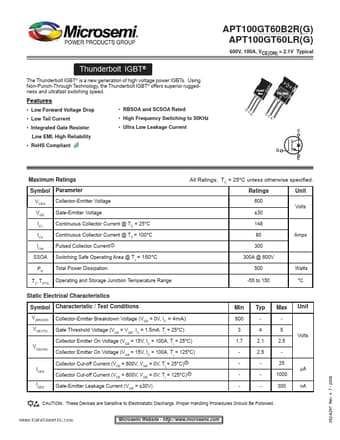

Additional preview pages of the APT100GT60LRG datasheet.

Low Forward Voltage Drop.
Low Tail Current.
Integrated Gate Resistor Low EMI, High Reliability.
RoHS Compliant G E.
RBSOA and SCSOA Rated.
High Frequency Switching to 50KHz.
Ultra Low Leakage Current G C E G C E C Maximum Ratings Symbol Parameter VCES VGE IC1 IC2 ICM SSOA PD TJ, TSTG Collector-Emitter Voltage Gate-Emitter Voltage Continuous Collector Current @ TC = 25°C Continuous Collector Current @ TC = 100°C Pulsed Colle.
