APT100GT60JRDL - Resonant Mode Combi IGBT

APT100GT60JRDL Description

www.DataSheet4U.com APT100GT60JRDL 600V, 100A, VCE(ON) = 2.1V Typical Resonant Mode Combi IGBT® The Thunderbolt IGBT® used in this Resonant Mode Com.

APT100GT60JRDL Features

* Low Forward Voltage Drop
* Low Tail Current
* Integrated Gate Resistor Low EMI, High Reliability
* Ultra soft recovery diode
* RBSOA and SCSOA Rated
* High Frequency Switching to 50KHz

APT100GT60JRDL Applications

* ISOTOP ®
* ZVS Phase Shifted Bridge
* Resonant Mode Switching
* Phase Shifted Bridge
* Welding
* Induction heating
* High Frequency SMPS G E C
* Low forward Diode Voltage (VF)
* RoHS Compliant Maximum Ratings Symbol Parameter VCES VG

📥 Download Datasheet

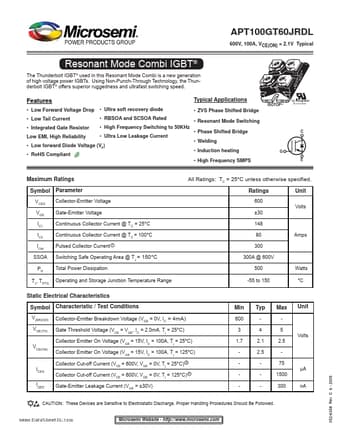

Preview of APT100GT60JRDL PDF
