APT100GT60JRDQ4 - Thunderbolt IGBT

Product Overview

Microsemi Corporation

Part number	APT100GT60JRDQ4
Manufacturer	Microsemi Corporation
File Size	235.96 KB
Description	Thunderbolt IGBT
Datasheet	APT100GT60JRDQ4 Datasheet

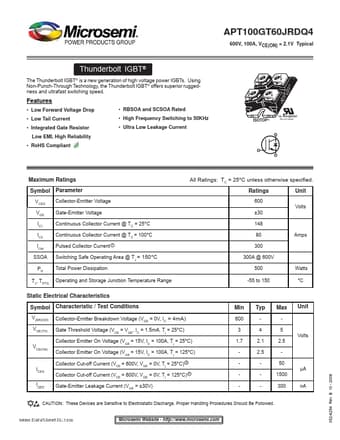

Additional preview pages of the APT100GT60JRDQ4 datasheet.

Low Forward Voltage Drop.
Low Tail Current.
Integrated Gate Resistor Low EMI, High Reliability.
RoHS Compliant.
RBSOA and SCSOA Rated.
High Frequency Switching to 50KHz.
Ultra Low Leakage Current S ISOTOP ® OT 22 7 "UL Recognized" file # E145592 Maximum Ratings Symbol Parameter VCES VGE IC1 IC2 ICM SSOA PD TJ, TSTG Collector-Emitter Voltage Gate-Emitter Voltage Continuous Collector Current @ TC = 25°C Continuous Collector Curr.
