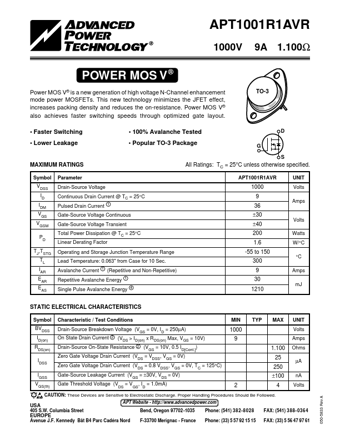

APT1001R1AVR
1000V 9A 1.100Ω
POWER MOS V ®
Power MOS V® is a new generation of high voltage N-Channel enhancement mode power MOSFETs. This new technology minimizes the JFET effect, increases packing density and reduces the on-resistance. Power MOS V® also achieves faster switching speeds through optimized gate layout.
TO-3
• Faster Switching • Lower Leakage
• 100% Avalanche Tested • Popular TO-3 Package
G
D
S
MAXIMUM RATINGS
Symbol VDSS ID IDM VGS VGSM PD TJ,TSTG TL IAR EAR EAS Parameter Drain-Source Voltage Continuous Drain Current @ TC = 25°C Pulsed Drain Current
1
All Ratings: TC = 25°C unless otherwise specified.
APT1001R1AVR UNIT Volts Amps
1000 9 36 ±30 ±40 200 1.
