LX5501A, InGAP HBT Gain Block

LX5501A TM ® InGAP HBT Gain Block P RODUCTION D ATA S HEET .
KEY FEATURES Advanced InGaP HBT DC to 6 GHz Operation Single Supply Low Idle Current (10 - 35 mA) Small Signal Gain ~ 11 dB at 6 GHz. P1dB ~ 11.

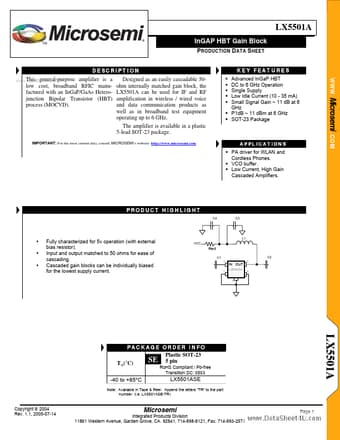

datasheet Preview Page 1 from Datasheet4u.com

LX5501A_MicrosemiCorporation.pdf

LX5501A Datasheet Preview — Preview of LX5501A PDF

Datasheet Details

Part number:

LX5501A

Manufacturer:

Microsemi ↗ Corporation

File Size:

188.89 KB

Description:

InGAP HBT Gain Block

Features

* Advanced InGaP HBT DC to 6 GHz Operation Single Supply Low Idle Current (10 - 35 mA) Small Signal Gain ~ 11 dB at 6 GHz
* P1dB ~ 11 dBm at 6 GHz
* SOT-23 Package
* This general-purpose www. datasheet4u. com amplifier is a low cost, broadband RFIC manufactured with

Applications

* PA driver for WLAN and Cordless Phones.
* VCO buffer.
* Low Current, High Gain Cascaded Amplifiers. PRODUCT HIGHLIGHT C4 C3
* Fully characterized for 5v operation (with external bias resistor). Input and output matched to 50 ohms for ease of cascading. C
