LX5506, InGaP HBT 4.5 - 6GHz Power Amplifier

LX5506 TM ® InGaP HBT 4.5 * 6GHz Power Amplifier P RODUCTION D ATA S HEET .
KEY FEATURES. Advanced InGaP HBT. Single-Polarity 3. EVM ~ 3% at Pout=18dBm for 64QAM/ 54Mbps OFDM. P1dB ~ +26dBm.

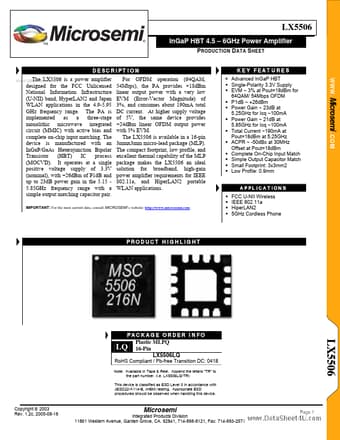

datasheet Preview Page 1 from Datasheet4u.com

LX5506_MicrosemiCorporation.pdf

LX5506 Datasheet Preview — Preview of LX5506 PDF

Datasheet Details

Part number:

LX5506

Manufacturer:

Microsemi ↗ Corporation

File Size:

539.06 KB

Description:

InGaP HBT 4.5 - 6GHz Power Amplifier

Features

* Advanced InGaP HBT
* Single-Polarity 3.3V Supply
* EVM ~ 3% at Pout=18dBm for 64QAM/ 54Mbps OFDM
* P1dB ~ +26dBm
* Power Gain ~ 23dB at 5.25GHz for Icq ~100mA
* Power Gain ~ 21dB at 5.85GHz for Icq ~100mA
* Total Current ~190mA at Pout=18dBm at 5.25GHz
* ACPR ~ -50d

Applications

* The LX5506 www. datasheet4u. com is a power amplifier designed for the FCC Unlicensed National Information Infrastructure (U-NII) band, HyperLAN2 and Japan WLAN applications in the 4.9-5.95 GHz frequency range. The PA is implemented as a three-stage monolithic microwave integrated circuit (MMIC) wit
