LX5503E - InGaP HBT 4 - 6GHz Power Amplifier

Microsemi Corporation

Datasheet Details

Part number	LX5503E
Manufacturer	Microsemi ↗ Corporation
File Size	276.33 KB
Description	InGaP HBT 4 - 6GHz Power Amplifier

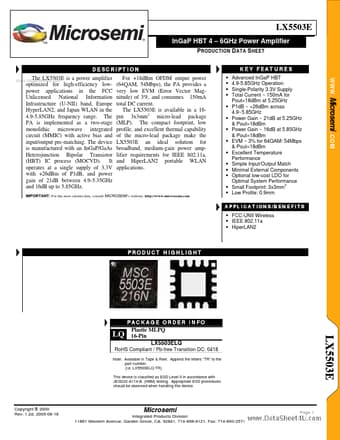

Datasheet	LX5503E_MicrosemiCorporation.pdf

KEY

Advanced InGaP HBT 4.9-5.85GHz Operation Single-Polarity 3.3V Supply Total Current ~ 150mA for Pout=18dBm at 5.25GHz P1dB ~ +26dBm across 4.9~5.85GHz Power Gain ~ 21dB at 5.25GHz & Pout=18dBm Power Gain ~ 16dB at 5.85GHz & Pout=18dBm EVM ~ 3% for 64QAM/ 54Mbps & Pout=18dBm Excellent Temperature Performance Simple Input/Output Match Minimal External Components Optional low-cost LDO for Optimal System Performance 2.
