LX5506B, InGaP HBT 4 6GHz Power Amplifier

LX5506B TM ® InGaP HBT 4 * 6GHz Power Amplifier P RODUCTION D ATA S HEET .
KEY FEATURES. Advanced InGaP HBT. Single-Polarity Voltage Supply. EVM ~ 2. Power Gai.

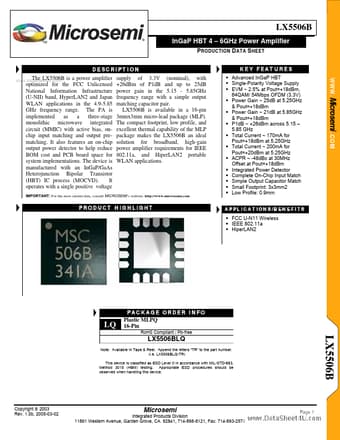

datasheet Preview Page 1 from Datasheet4u.com

LX5506B_MicrosemiCorporation.pdf

LX5506B Datasheet Preview — Preview of LX5506B PDF

Datasheet Details

Part number:

LX5506B

Manufacturer:

Microsemi ↗ Corporation

File Size:

235.19 KB

Description:

InGaP HBT 4 6GHz Power Amplifier

Features

* Advanced InGaP HBT
* Single-Polarity Voltage Supply
* EVM ~ 2.5% at Pout=+18dBm, 64QAM/ 54Mbps OFDM (3.3V)
* Power Gain ~ 25dB at 5.25GHz & Pout=+18dBm
* Power Gain ~ 21dB at 5.85GHz & Pout=+18dBm
* P1dB ~ +26dBm across 5.15
* 5.85 GHz
* Total Current ~ 170mA fo

Applications

* BENEFITS The LX5506B www. datasheet4u. com is a power amplifier optimized for the FCC Unlicensed National Information Infrastructure (U-NII) band, HyperLAN2 and Japan WLAN applications in the 4.9-5.85 GHz frequency range. The PA is implemented as a three-stage monolithic microwave integrated circuit
