2N6250 NPN POWER SILICON TRANSISTOR

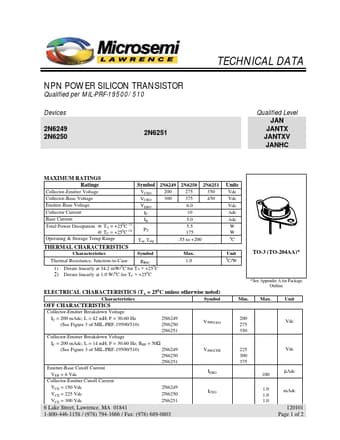

TECHNICAL DATA NPN POWER SILICON TRANSISTOR Qualified per MIL-PRF-19500/510 Devices 2N6249 2N6250 2N6251 Qualified Level JAN JANTX JANTXV JANHC MAXIMUM RATINGS Ratings Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Base Current Total Power Dissipation @ TA = +250C (1) @ TC = +250C (2) Operating & Storage Temp Range Symbol 2N6249 2N6250 VCEO VCBO VEBO IC IB PT Top, Tstg 200 300 275 375 6.0 10 5.0 5.5 175 -55 to +200 Max. 1.0 2N6251 350 450 Units Vdc Vd.
