NX2124 - 300kHz SYNCHRONOUS PWM CONTROLLER

NX2124 Description

Evaluation board available.NX2124/2124A 300kHz SYNCHRONOUS PWM CONTROLLER PRODUCTION DATA SHEET Pb Free Product .
FEATURES The NX2124/2124A controller IC is a synchronous Buck controller IC designed for step down DC to DC converter applications.

NX2124 Applications

* It is optimized to convert bus voltages from 2V to 25V to outputs as low as 0.8V voltage. n n n n Bus voltage operation from 2V to 25V Fixed 300kHz voltage mode controller Internal Digital Soft Start Function Prebias Startup The NX2124/2124A operates at fixed 300kHz, employs n Less than 50 nS ad

📥 Download Datasheet

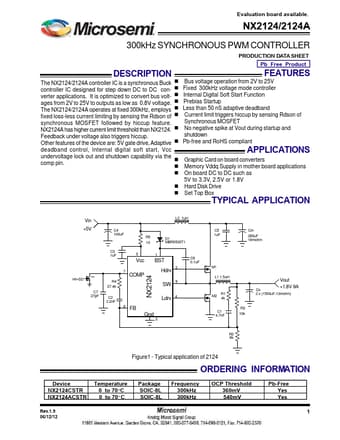

Preview of NX2124 PDF
