NX20P0408 Description

NX20P0408 USB D+/D- protection IC Rev.1.1 * 19 August 2019 Product data sheet 1 General .
NX20P0408 is a single chip USB data lines protection solution that provides 28V shortto-VBUS protection to system side D+ and D- pins located near VBU.

NX20P0408 Features

* USB Type-C D+/D- short protection to VBUS
* CON_DP / CON_DN : 28VDC
* Low Rdson switch : 4Ω
* High switch bandwidth = 1.5GHz
* 35V surge protection on CON_DP/CON_DN
* Fast OVP turn off time : 60ns
* Post-stage clamp circuit to clamp voltage u

NX20P0408 Applications

* Smartphone
* Tablet

📥 Download Datasheet

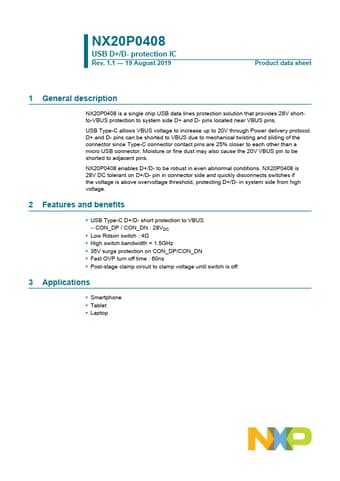

Preview of NX20P0408 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NX20P0408
Manufacturer
NXP ↗
File Size
433.44 KB
Datasheet
NX20P0408-NXP.pdf
Description
USB D+/D- protection
