NX20P3483UK

high voltage sink/source combo switch

NXP

NX20P3483UK Features

* Wide supply voltage range for VBUS from 2.8V to 20V

* System power supply V5V from 4.0V to 5.5V

* Chip power supply VDD from 2.7V to 5.5V

* VBUS to VCHG Switch

* 28m(typical) ultra low ON resistance

* ISW maximum 5A continuous current

* Bidirectional operation: 20V si

NX20P3483UK General Description

The NX20P3483UK is a product with combined multiple power switches and an LDO for USB PD application. The device includes a bidirectional high voltage power switch which supports both 20V sink and 6V source; a 5V power switch for source and a 100mA LDO provides power supply for dead battery operatio.

NX20P3483UK Datasheet (252.22 KB)

NX20P3483UK Datasheet Preview — Preview of NX20P3483UK PDF

Datasheet Details

Part number:

NX20P3483UK

Manufacturer:

NXP ↗

File Size:

252.22 KB

Description:

High voltage sink/source combo switch.

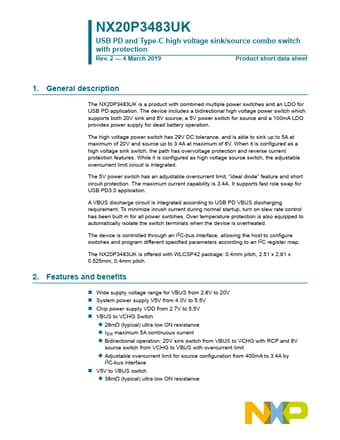

NX20P3483UK USB PD and Type-C high voltage sink/source combo switch with protection Rev. 2

* 4 March 2019 Product short data sheet 1. Gene.
