NX2020P1 - single P-channel Trench MOSFET

NX2020P1 Description

DFN2020MD-6 NX2020P1 30 V, single P-channel Trench MOSFET 22 January 2014 Product data sheet 1.General .
P-channel enhancement mode Field-Effect Transistor (FET) in a leadless medium power DFN2020MD-6 (SOT1220) Surface-Mounted Device (SMD) plastic package.

NX2020P1 Features

* Trench MOSFET technology
* Small and leadless ultra thin SMD plastic package: 2 x 2 x 0.65 mm
* Exposed drain pad for excellent thermal conduction

NX2020P1 Applications

* Charging switch for portable devices
* DC-to-DC converters
* Power management in battery-driven portable devices
* Hard disk and computing power management 4. Quick reference data Table 1. Quick reference data Symbol Parameter VDS drain-source voltage VGS gate

📥 Download Datasheet

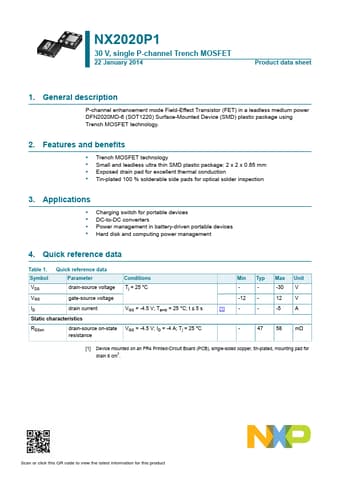

Preview of NX2020P1 PDF
