NX2113A, NX2113 - 300kHz & 600kHz SYNCHRONOUS PWM CONTROLLER

NX2113A Description

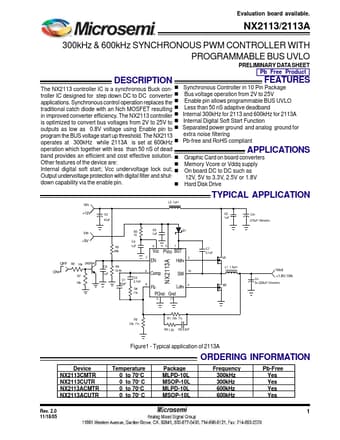

Evaluation board available.NX2113/2113A 300kHz & 600kHz SYNCHRONOUS PWM CONTROLLER WITH PROGRAMMABLE BUS UVLO PRELIMINARY DATA SHEET Pb Free Prod.
FEATURES The NX2113 controller IC is a synchronous Buck con- n Synchronous Controller in 10 Pin Package troller IC designed for step down DC to DC c.

NX2113A Applications

* Synchronous control operation replaces the n Enable pin allows programmable BUS UVLO traditional catch diode with an Nch MOSFET resulting n Less than 50 nS adaptive deadband in improved converter efficiency. The NX2113 controller n Internal 300kHz for 2113 and 600kHz for 2113A is optimized to conve

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NX2113A, NX2113. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NX2113A, NX2113
Manufacturer
Microsemi ↗
File Size
717.59 KB
Datasheet
NX2113-Microsemi.pdf
Description
300kHz & 600kHz SYNCHRONOUS PWM CONTROLLER
Note
This datasheet PDF includes multiple part numbers: NX2113A, NX2113.
Please refer to the document for exact specifications by model.
