NX2124A, NX2124 300kHz SYNCHRONOUS PWM CONTROLLER

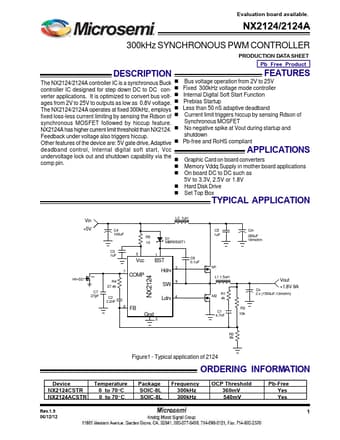

📥 Download Datasheet  Datasheet Preview Page 1

Description

Evaluation board available.NX2124/2124A 300kHz SYNCHRONOUS PWM CONTROLLER PRODUCTION DATA SHEET Pb Free Product .
FEATURES The NX2124/2124A controller IC is a synchronous Buck controller IC designed for step down DC to DC converter applications.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NX2124A, NX2124. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
NX2124A, NX2124
Manufacturer
Microsemi ↗
File Size
546.96 KB
Datasheet
NX2124-Microsemi.pdf
Description
300kHz SYNCHRONOUS PWM CONTROLLER
Note
This datasheet PDF includes multiple part numbers: NX2124A, NX2124.
Please refer to the document for exact specifications by model.

Applications

* It is optimized to convert bus voltages from 2V to 25V to outputs as low as 0.8V voltage. n n n n Bus voltage operation from 2V to 25V Fixed 300kHz voltage mode controller Internal Digital Soft Start Function Prebias Startup The NX2124/2124A operates at fixed 300kHz, employs n Less than 50 nS ad
