NX20P5090

High voltage USB PD power switch

NX20P5090 Features

* Wide supply voltage range from 2.5 V to 20 V

* ISW maximum 5 A continuous current

* 29 V tolerance on both VBUS and VINT pin

* 30 m (typical) Low ON resistance

* Adjustable VBUS over voltage protection

* Built in slew rate control for inrush current limit

* All time tw

NX20P5090 General Description

The NX20P5090 is an advanced 5 A unidirectional power switch for USB PD. It includes under voltage lockout, over voltage lockout, reverse current protection and over-temperature protection circuits. It is designed to automatically isolate the power switch terminals when a fault condition occurs. Bot.

NX20P5090 Datasheet (1.05 MB)

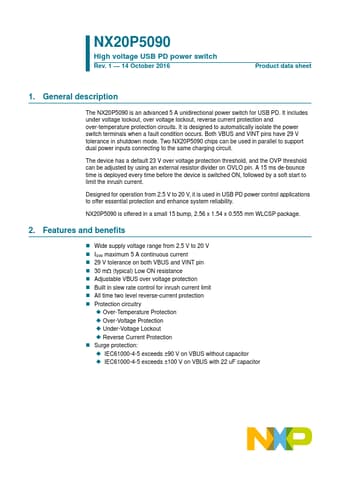

Preview of NX20P5090 PDF

Datasheet Details

Part number:

NX20P5090

Manufacturer:

NXP ↗

File Size:

1.05 MB

Description:

High voltage usb pd power switch.
