ICE15N73

The ICE15N73 is N-Channel MOSFET designed by Micross Components.

Product Overview

Micross Components

Datasheet Details

Part number	ICE15N73
Manufacturer	Micross Components
File Size	563.93 KB
Description	N-Channel MOSFET
Datasheet	ICE15N73-MicrossComponentspdf

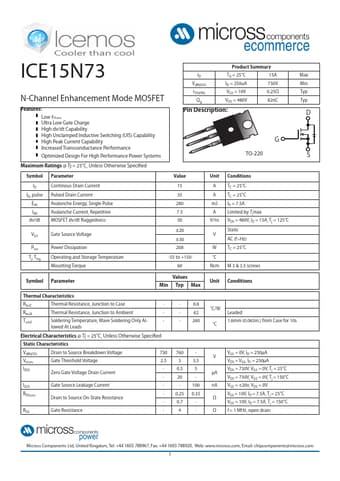

Additional preview pages of the ICE15N73 datasheet.

Product details

Description

TO-220 G Maximum Ratings @ Tj = 25°C, Unless Otherwise Specified Symbol Parameter Value Unit Conditions ID ID, pulse EAS IAR dv/dt Continous Drain Current Pulsed Drain Current Avalanche Energy, Single Pulse Avalanche Current, Repetitive MOSFET dv/dt Ruggedness VGS Ptot Tj, Tstg Gate Source Voltage Power Dissipation Operating and Storage Temperature Mounting Torque 15 35 280 7.5 50 ±20 ±30 208 -55 to +150 60 A A mJ A V/ns V W °C Ncm TC = 25°C TC = 25°C ID = 7.5A Limited by Tjmax VDS

Features

r Low DS(on) Ultra Low Gate Charge High dv/dt Capability High Unclamped Inductive Switching (UIS) Capability High Peak Current Capability Increased Transconductance Performance Optimized Design For High Performance Power Systems Product Summary ID V(BR)DSS rDS(ON) Qg TA = 25°C ID = 250uA VGS = 10V VDS = 480V 15A 730V 0.25Ω 82nC Pin.
