BAT-5+, BAT-5+-Mini Fixed Attenuator

📥 Download Datasheet  Datasheet Preview Page 1

Description

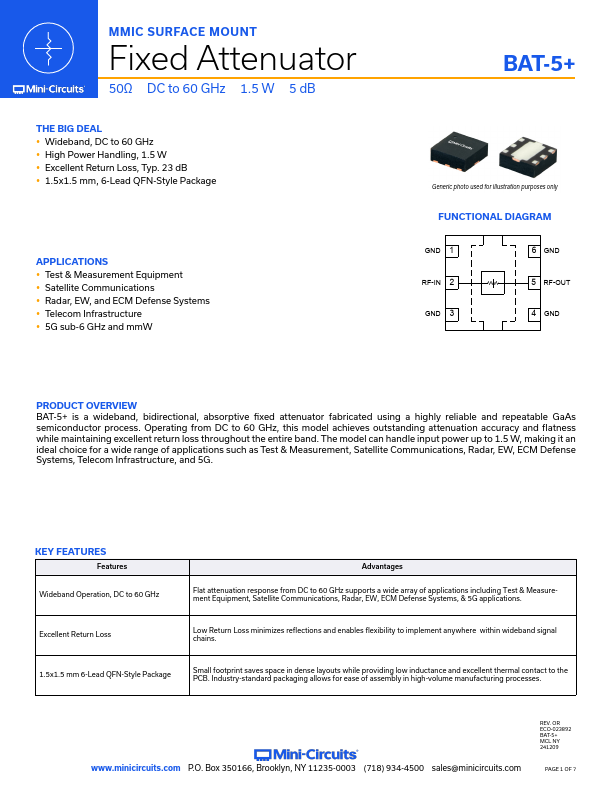

MMIC SURFACE MOUNT Fixed Attenuator 50Ω DC to 60 GHz 1.5 W 5 dB THE BIG DEAL y Wideband, DC to 60 GHz y High Power Handling, 1.5 W y Excellent Return .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BAT-5+, BAT-5+-Mini. Please refer to the document for exact specifications by model.

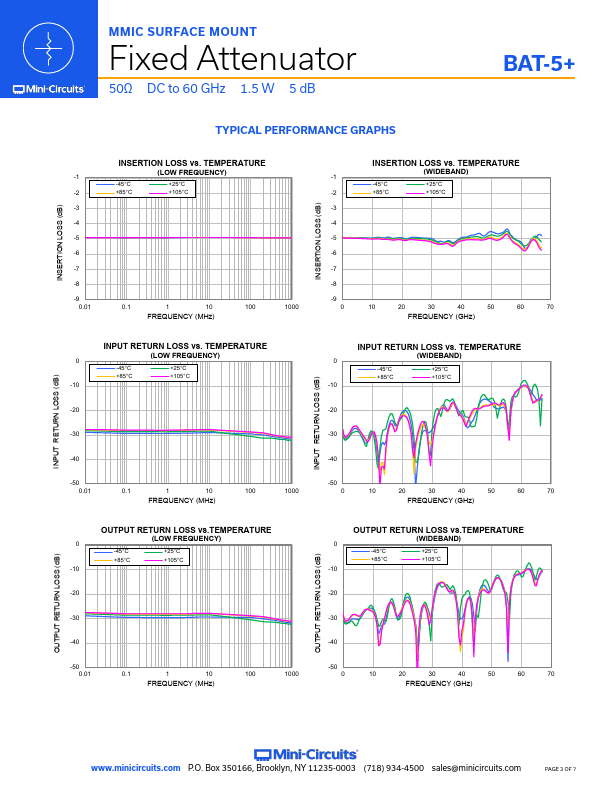

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
BAT-5+, BAT-5+-Mini
Manufacturer
Mini-Circuits
File Size
394.18 KB
Datasheet
BAT-5+-Mini-Circuits.pdf
Description
Fixed Attenuator
Note
This datasheet PDF includes multiple part numbers: BAT-5+, BAT-5+-Mini.
Please refer to the document for exact specifications by model.

Applications

* y Test & Measurement Equipment y Satellite Communications y Radar, EW, and ECM Defense Systems y Telecom Infrastructure y 5G sub-6 GHz and mmW BAT-5+ Generic photo used for illustration purposes only FUNCTIONAL DIAGRAM GND 1 RF-IN 2 GND 3 6 GND 5 RF-OUT 4 GND PRODUCT OVERVIEW BAT-5+ is a wideba
