BAT-6+ Fixed Attenuator

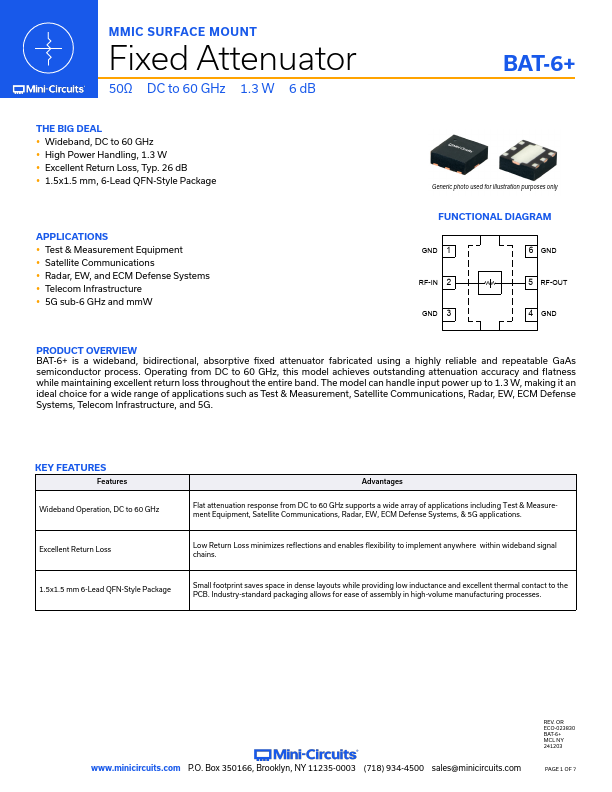

MMIC SURFACE MOUNT Fixed Attenuator 50Ω DC to 60 GHz 1.3 W 6 dB BAT-6+ THE BIG DEAL y Wideband, DC to 60 GHz y High Power Handling, 1.3 W y Excellent Return Loss, Typ. 26 dB y 1.5x1.5 mm, 6-Lead QFN-Style Package APPLICATIONS y Test & Measurement Equipment y Satellite Communications y Radar, EW, and ECM Defense Systems y Telecom Infrastructure y 5G sub-6 GHz and mmW Generic photo used for illustration purposes only FUNCTIONAL DIAGRAM GND 1 RF-IN 2 GND 3 6 GND 5 RF-OUT 4 GND PRODUCT OVERVIE.

BAT-6+ Features

* Features Wideband Operation, DC to 60 GHz Advantages Flat attenuation response from DC to 60 GHz supports a wide array of applications including Test & Measurement Equipment, Satellite Communications, Radar, EW, ECM Defense Systems, & 5G applications. Excellent Return Loss Low Return Loss minimiz
