MSWA-2-20+

Switch

Mini-Circuits

Image	Manufacturer	P/N	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	Mini-Circuits	MSWA-2-20+	MSWA-2-20-	IC RF SWITCH SPDT 2GHZ	DigiKey	0	1000 units	$8.32	🛒 Buy Now

Download Datasheet (326.96 KB)

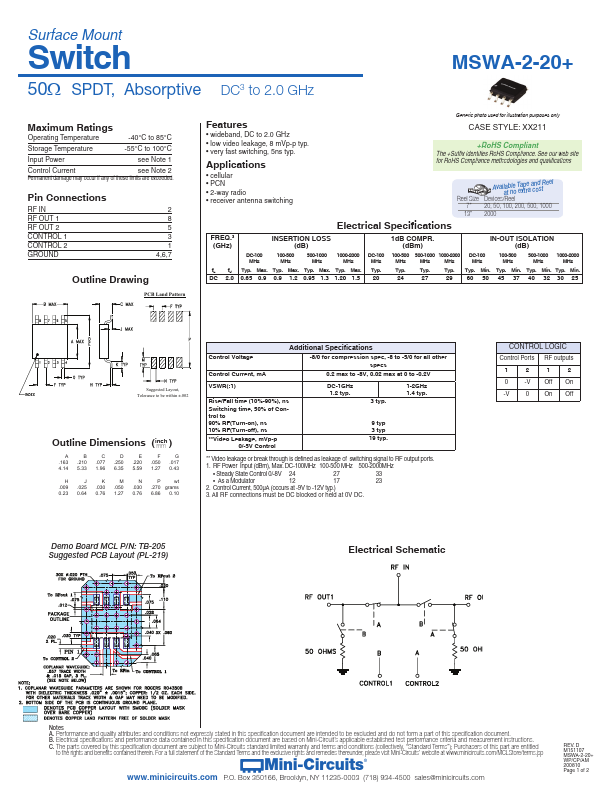

MSWA-2-20+ Datasheet Preview — Preview of MSWA-2-20+ Datasheet

Datasheet Details

Part number:

MSWA-2-20+

Manufacturer:

Mini-Circuits

File Size:

326.96 KB

Description:

Switch.
Surface Mount Switch 50W SPDT, Absorptive DC3 to 2.0 GHz MSWA-2-20+ Maximum Ratings Operating Tem.
perature -40°C to 85°C Storage Temperature -55°C to 100°C Input Power see Note 1 Control Curre.

✔ MSWA-2-20+ Features

wideband, DC to 2.0 GHz
low video leakage, 8 mVp-p typ.
very fast switching, 5ns typ. Applications
cellular
PCN
2-way radio
receiver antenna switching Gene

✔ MSWA-2-20+ Application

cellular
PCN
2-way radio
receiver antenna switching Generic photo used for illustration purposes on
