TCBT-14+ Bias Tee

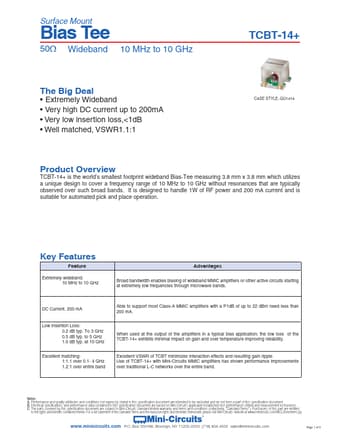

Surface Mount Bias Tee 50Ω Wideband 10 MHz to 10 GHz TCBT-14+ The Big Deal Extremely Wideband Very high DC current up to 200mA Very low insertion loss,<1dB Well matched, VSWR1.1:1 CASE STYLE: GU1414 Product Overview TCBT-14+ is the world’s smallest footprint wideband Bias-Tee measuring 3.8 mm x 3.8 mm which utilizes a unique design to cover a frequency range of 10 MHz to 10 GHz without resonances that are typically observed over such broad bands. It is.

TCBT-14+ Features

* Feature Extremely wideband: 10 MHz to 10 GHz Advantages Broad bandwidth enables biasing of wideband MMIC amplifiers or other active circuits starting at extremely low frequencies through microwave bands. DC Current, 200 mA Able to support most Class-A MMIC amplifiers with a P1dB of up to 22 dBm n

TCBT-14+-Mini-Circuits.pdf

This datasheet PDF includes multiple part numbers: TCBT-14+, TCBT-14+-Mini. Please refer to the document for exact specifications by model.
TCBT-14+ Datasheet Preview Page 2 TCBT-14+ Datasheet Preview Page 3

Datasheet Details

Part number:

TCBT-14+, TCBT-14+-Mini

Manufacturer:

Mini-Circuits

File Size:

400.45 KB

Description:

Bias tee.

Note:

This datasheet PDF includes multiple part numbers: TCBT-14+, TCBT-14+-Mini.
Please refer to the document for exact specifications by model.
