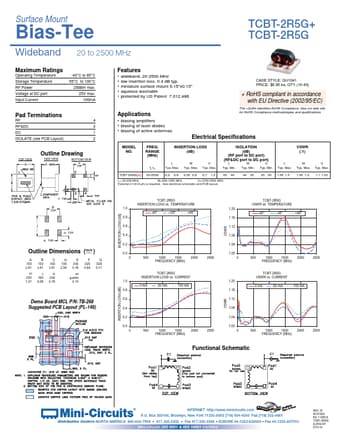

Surface Mount Bias-Tee Wideband 20 to 2500 MHz TCBT-2R5G+ TCBT-2R5G Maximum Ratings Operating Temperature Storage Temperature RF Power Voltage at DC.

datasheet Preview Page 1 from Datasheet4u.com

TCBT-2R5G_Mini-Circuits.pdf

TCBT-2R5G Datasheet Preview — This datasheet PDF includes multiple part numbers: TCBT-2R5G, TCBT-2R5G_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TCBT-2R5G, TCBT-2R5G_Mini

Manufacturer:

Mini-Circuits

File Size:

193.52 KB

Description:

Bias-Tee

Note:

This datasheet PDF includes multiple part numbers: TCBT-2R5G, TCBT-2R5G_Mini.
Please refer to the document for exact specifications by model.

Features

* wideband, 20-2500 MHz
* low insertion loss, 0.4 dB typ.
* miniature surface mount 0.15"x0.15"
* aqueous washable
* protected by US Patent 7,012,486 CASE STYLE: GU1041 PRICE: $6.95 ea. QTY (10-49) + RoHS compliant in accordance with EU Directive (2002/95/EC)

Applications

* biasing ampliﬁers
* biasing of laser diodes
* biasing of active antennas The +Sufﬁx identiﬁes RoHS Compliance. See our web site for RoHS Compliance methodologies and qualiﬁcations. Electrical Speciﬁcations MODEL NO. FREQ. RANGE (MHz) fL-fU INSERTION LOSS (dB) L M U
