TCBT-6G+, TCBT-6G+-Mini, Bias-Tee

top hat® Surface Mount Bias-Tee 50Ω Wideband 50 to 6000 MHz .

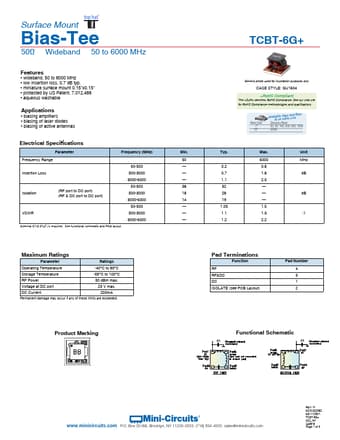

datasheet Preview Page 1 from Datasheet4u.com

TCBT-6G+-Mini-Circuits.pdf

TCBT-6G+ Datasheet Preview — This datasheet PDF includes multiple part numbers: TCBT-6G+, TCBT-6G+-Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TCBT-6G+, TCBT-6G+-Mini

Manufacturer:

Mini-Circuits

File Size:

562.64 KB

Description:

Bias-Tee

Note:

This datasheet PDF includes multiple part numbers: TCBT-6G+, TCBT-6G+-Mini.
Please refer to the document for exact specifications by model.

Features

* wideband, 50 to 6000 MHz
* low insertion loss, 0.7 dB typ.
* miniature surface mount 0.15"x0.15"
* protected by US Patent, 7,012,486

Applications

* biasing amplifiers
* biasing of laser diodes
* biasing of active antennas Electrical Specifications Parameter Frequency (MHz) Frequency Range Insertion Loss Isolation (RF port to DC port) (RF & DC port to DC port) VSWR External C1(0.01µF) is required. See functional
