VLF-5000, VLF-5000_Mini, Low Pass Filter DC to 5000 MHz

Coaxial Low Pass Filter DC to 5000 MHz Maximum Ratings Operating Temperature Storage Temperature RF Power Input DC Current Input to Output -55°C to 1.

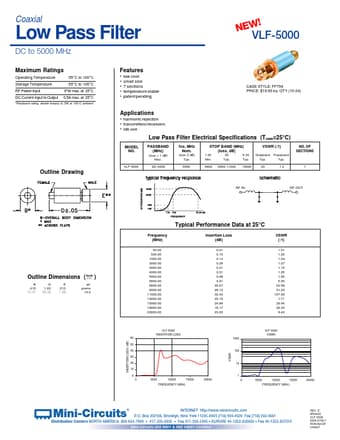

datasheet Preview Page 1 from Datasheet4u.com

VLF-5000_Mini-Circuits.pdf

VLF-5000 Datasheet Preview — This datasheet PDF includes multiple part numbers: VLF-5000, VLF-5000_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VLF-5000, VLF-5000_Mini

Manufacturer:

Mini-Circuits

File Size:

89.71 KB

Description:

Low Pass Filter DC to 5000 MHz

Note:

This datasheet PDF includes multiple part numbers: VLF-5000, VLF-5000_Mini.
Please refer to the document for exact specifications by model.

Features

* low cost small size 7 sections temperature stable patent pending CASE STYLE: FF704 PRICE: $19.95 ea. QTY (10-24)

Applications

* harmonic rejection
* transmitters/receivers
* lab use Low Pass Filter Electrical Specifications (TAMB=25°C) MODEL NO. PASSBAND (MHz) (loss < 1 dB) Max. VLF-5000 DC-5000 fco, MHz Nom. (loss 3 dB) Typ. 5580 STOP BAND (MHz) (loss, dB) f 20 Min. 6600 30 Typ. 6800-11000 fr 20
