VLF-530, VLF-530_Mini Coaxial Low Pass Filter DC to 530 MHz

Mini-Circuits

Description

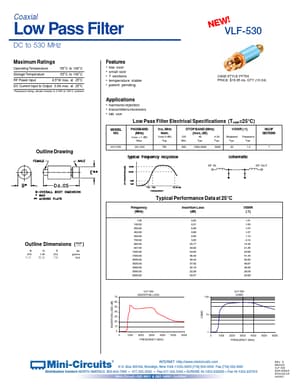

Coaxial Low Pass Filter DC to 530 MHz Maximum Ratings Operating Temperature Storage Temperature RF Power Input -55°C to 100°C -55°C to 100°C 8.5 *.

📥 Download Datasheet

VLF-530 Datasheet Preview — This datasheet PDF includes multiple part numbers: VLF-530, VLF-530_Mini. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: VLF-530, VLF-530_Mini
Manufacturer: Mini-Circuits
File Size: 89.95 KB
Datasheet: VLF-530_Mini-Circuits.pdf
Description: Coaxial Low Pass Filter DC to 530 MHz
Note: This datasheet PDF includes multiple part numbers: VLF-530, VLF-530_Mini.
Please refer to the document for exact specifications by model.

Features

* low cost small size 7 sections temperature stable patent pending CASE STYLE: FF704 PRICE: $19.95 ea. QTY (10-24) DC Current Input to Output 0.5A max. at 25°C

Applications

* harmonic rejection
* transmitters/receivers
* lab use Low Pass Filter Electrical Specifications (TAMB=25°C) MODEL NO. PASSBAND (MHz) (loss < 1 dB) Max. VLF-530 DC-530 fco, MHz Nom. (loss 3 dB) Typ. 700 STOP BAND (MHz) (loss, dB) f 20 Min. 820 40 Typ. 1050-3200 fr 20 Typ.
