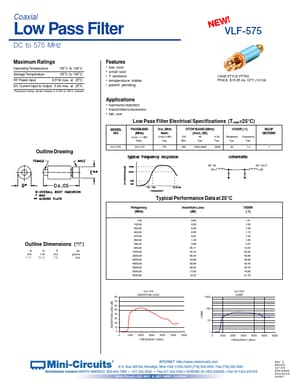

VLF-575, VLF-575_Mini Low Pass Filter DC to 575 MHz

Coaxial Low Pass Filter DC to 575 MHz Maximum Ratings Operating Temperature Storage Temperature RF Power Input -55°C to 100°C -55°C to 100°C 8.5 *.

VLF-575_Mini-Circuits.pdf

VLF-575 Datasheet Preview — This datasheet PDF includes multiple part numbers: VLF-575, VLF-575_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VLF-575, VLF-575_Mini

Manufacturer:

Mini-Circuits

File Size:

88.89 KB

Description:

Low Pass Filter DC to 575 MHz

Note:

This datasheet PDF includes multiple part numbers: VLF-575, VLF-575_Mini.
Please refer to the document for exact specifications by model.

Features

* low cost small size 7 sections temperature stable patent pending CASE STYLE: FF704 PRICE: $19.95 ea. QTY (10-24) DC Current Input to Output 0.5A max. at 25°C

Applications

* harmonic rejection
* transmitters/receivers
* lab use Low Pass Filter Electrical Specifications (TAMB=25°C) MODEL NO. PASSBAND (MHz) (loss < 1 dB) Max. VLF-575 DC-575 fco, MHz Nom. (loss 3 dB) Typ. 770 STOP BAND (MHz) (loss, dB) f 20 Min. 900 40 Typ. 1050-3200 fr 20 Typ.
