ML61 Datasheet - Minilogic Device

Positive Voltage Detector

ML61 Features

* z z z z z CMOS Low Power Consumption : Typical 1.0uAat Vin=2.0V Selectable Detect V oltage : 1.1V to 6.0V in 0.1V increments HighlyAccurate : Detect V oltage 1.1V to 1.9V + 3% Detect V oltage 2.0V to 6.0V + 2% Operating V oltage : 0.8V to 10.0V PackageAvailable : SOT23 (150mW), SOT89 (500mW) & TO92

ML61 General Description

The ML61 is a group of high-precision and low-power voltage detectors. The ML61 consists of a highly-accurate and low-power reference voltage source, a comparator, a hysteresis circuit, and an output driver. Detect voltage is very accurate and stable with N-channel open drain and CMOS, are available.

ML61 Datasheet (914.89 KB)

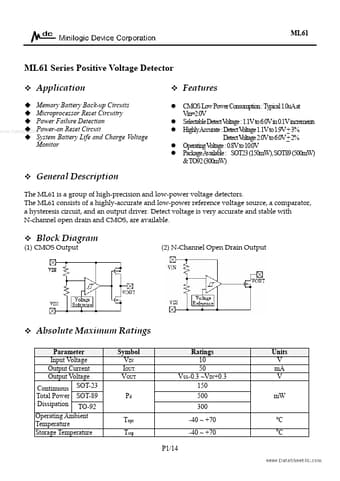

ML61 Datasheet Preview — Preview of ML61 PDF

Datasheet Details

Part number:

ML61

Manufacturer:

Minilogic Device

File Size:

914.89 KB

Description:

Positive voltage detector.
ML61 ML61 Series Positive Voltage Detector Application Memory Battery Back-up Circuits Microprocessor Reset Circuitry Power Failure Detection.
