ML6204

High Speed LDO Regulators

ML6204 Features

* The ML6204 series are highly precise, low noise, positive voltage LDO regulators manufactured using CMOS process. The series achieves high ripple rejection and low dropout and consists of a standard voltage source, an error correction, current limiter and a phase compensation circuit plus a driver

ML6204 Datasheet (912.00 KB)

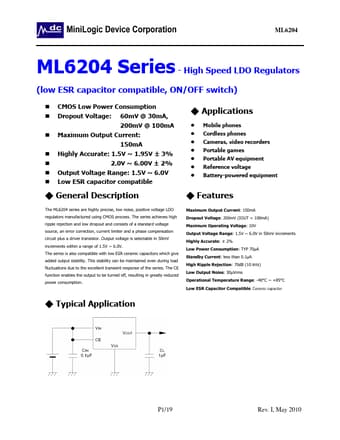

Preview of ML6204 PDF

Datasheet Details

Part number:

ML6204

Manufacturer:

Minilogic Device

File Size:

912.00 KB

Description:

High speed ldo regulators.
ML6204 ML6204 Series - High Speed LDO Regulators (low ESR capacitor compatible, ON/OFF switch) CMOS Low Power Consumption Dropout Voltage: 60mV @ 3.
