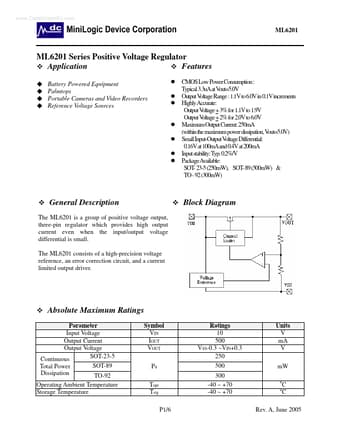

ML6201 Datasheet (Minilogic Device) - Positive Voltage Regulator

ML6201, Positive Voltage Regulator

The ML6201 is a group of positive voltage output, three-pin regulator which provides high output current even when the input/output voltage differential is small.

The ML6201 consists of a high-precision voltage reference, an error correction circuit, and a current limited output driver.

Block Diagr

ML6201 Features

* Battery Powered Equipment Palmtops Portable Cameras and Video Recorders Reference Voltage Sources CMOS Low Power Consumption : Typical 3.3uAat V out=5.0V Output V oltage Range : 1.1V to 6.0V in 0.1V increments HighlyAccurate: Output V oltage + 3% for 1.1V to 1.9V Output V oltage + 2% for 2.0V to 6.0
