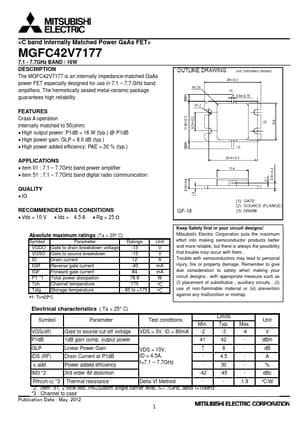

datasheet Preview Page 1 from Datasheet4u.com

MGFC42V7177 C band Internally Matched Power GaAs FET

MGFC42V7177 7.1 - 7.7GHz BAND / 16W .
The MGFC42V7177 is an internally impedance-matched GaAs power FET especially designed for use in 7. 7.

MGFC42V7177_MitsubishiElectricSemiconductor.pdf

MGFC42V7177 Datasheet Preview — Preview of MGFC42V7177 PDF

Datasheet Details

Part number:

MGFC42V7177

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

160.60 KB

Description:

C band Internally Matched Power GaAs FET

Features

* Crass A operation Internally matched to 50(ohm)
* High output power: P1dB = 16 W (typ. ) @ P1dB
* High power gain: GLP = 8.0 dB (typ. )

Applications

* item 01 : 7.1
* 7.7GHz band power amplifier
* item 51 : 7.1
* 7.7GHz band digital radio communication QUALITY
* IG RECOMMENDED BIAS CONDITIONS
* Vds = 10 V
* Ids = 4.5 A
* Rg = 25  www. DataSheet. net/ Absolute maximum ratings (Ta = 25 C) Symbol Parameter
