MGFC42V4450 Datasheet, Fet, Mitsubishi

MGFC42V4450 Features

  • Fet Class A operation Internally matched to 50(ohm) system
  • High output power P1dB=16W (TYP.) @f=4.4
      – 5.0GHz
  • High power gain GLP=12dB (TYP.) @f=4.4
    &

PDF File Details

Part number:

MGFC42V4450

Manufacturer:

Mitsubishi

File Size:

87.70kb

Download:

📄 Datasheet

Description:

C band internally matched power gaas fet. The MGFC42V4450 is an internally impedance-matched GaAs power FET especially designed for use in 4.4   – 5.0 GHz band a

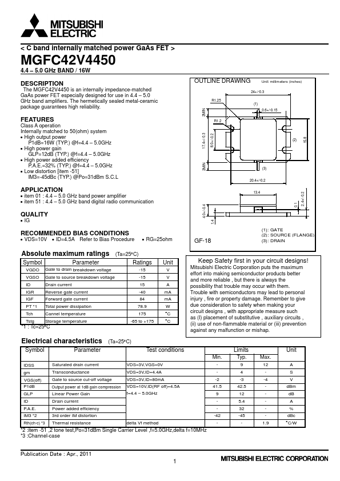

Datasheet Preview: MGFC42V4450 📥 Download PDF (87.70kb)
Page 2 of MGFC42V4450
