7510 SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER

7510 Description

MITSUBISHI MICROCOMPUTERS 7510 Group SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER .
The 7510 group is the 8-bit microcomputer based on the 740 family core technology.

7510 Features

* qBasic machine-language instructions 71 qThe minimum instruction execution time 0.5 µs (at 8.0 MHz oscillation frequency) qRAM for LCD display 160 bytes qProgrammable input/output ports 41 qInterrupts 15 sources, 15 vectors (includes key-on wake up) qTimers 8-bit ! 3, 16-bit ! 2 qSerial I/O 8

📥 Download Datasheet

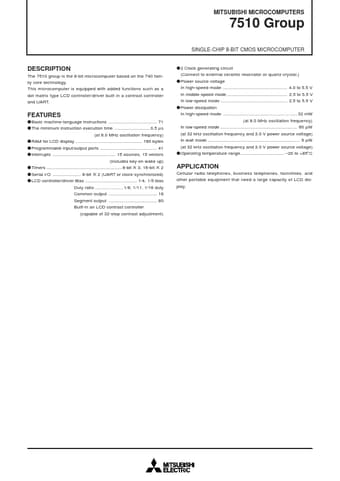

Preview of 7510 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
7510
Manufacturer
Mitsubishi
File Size
596.40 KB
Datasheet
7510-Mitsubishi.pdf
Description
SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER
