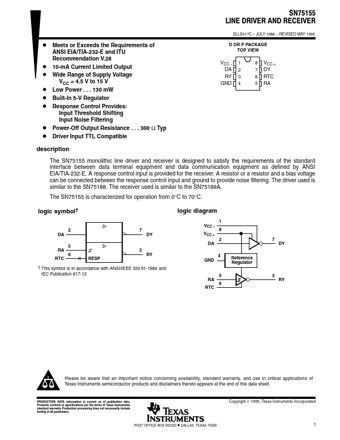

75155 - LINE DRIVER/RECEIVER

The SN75155 monolithic line driver and receiver is designed to satisfy the requirements of the standard interface between data terminal equipment and data communication equipment as defined by ANSI EIA/TIA-232-E.

A response control input is provided for the receiver.

A resistor or a resistor and a b

SN75155 LINE DRIVER AND RECEIVER D Meets or Exceeds the Requirements of ANSI EIA/TIA-232-E and ITU Recommendation V.28 D 10-mA Current Limited Output D Wide Range of Supply Voltage VCC = 4.5 V to 15 V D Low Power .

.

.

130 mW D Built-In 5-V Regulator D Response Control Provides: Input Threshold Shifting Input Noise Filtering D Power-Off Output Resistance .

.

.

300 Ω Typ D Driver Input TTL Compatible SLLS017C JULY 1986 REVISED MAY 1995 D OR P PACKAGE TOP VIEW VCC
