7512 SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER

7512 Description

7512 Group SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER REJ03B0122-0101 Rev.1.01 Feb 18, 2005 .
The 7512 Group is the 8-bit microcomputer based on the 740 family core technology.

7512 Features

* qBasic machine-language instructions 71 qMinimum instruction execution time 1.0 µs (at 4 MHz oscillation frequency) qMemory size Flash memory 36 K to 52 Kbytes RAM 1.0 K to 1.5 Kbytes qProgrammable input/output ports 36 qInterrupts 19 sources, 16 vectors qTimers 8-bit ✕ 4 qSerial interface Se

📥 Download Datasheet

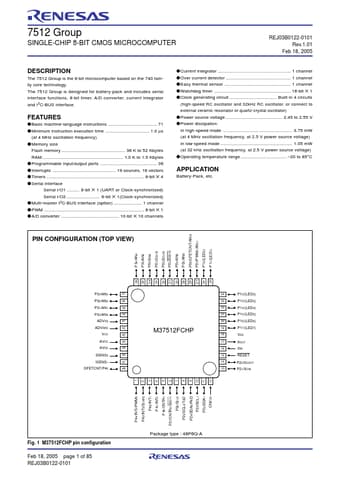

Preview of 7512 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
7512
Manufacturer
Renesas ↗
File Size
823.92 KB
Datasheet
7512-Renesas.pdf
Description
SINGLE-CHIP 8-BIT CMOS MICROCOMPUTER
