75158 Datasheet - Texas Instruments

75158 DUAL DIFFERENTIAL LINE DRIVER

The SN75158 is a dual differential line driver designed to satisfy the requirements set by the ANSI EIA/TIA-422-B and ITU V.11 interface specifications. The outputs provide complementary signals with high-current capability for driving balanced lines, such as twisted pair, at normal line impedance w.
SN75158 DUAL DIFFERENTIAL LINE DRIVER D Meets or Exceeds the Requirements of ANSI EIA/TIA-422-B and ITU Recommendation V.11 D Single 5-V Supply D Balanced-Line Operation D TTL Compatible D High Output Impedance in Power-Off Condition D High-Current Active-Pullup Outputs D Short-Circuit Protection D Dual Channels D Input Clamp Diodes SLLS085B JANUARY 1977 REVISED MAY 1995 D, P, OR PS† PACKAGE (TOP VIEW) 1Z 1 1Y 2 1A 3 GND 4 8 VCC 7 2Z 6 2Y 5 2A † The PS package is only av.

75158 Datasheet (1.07 MB)

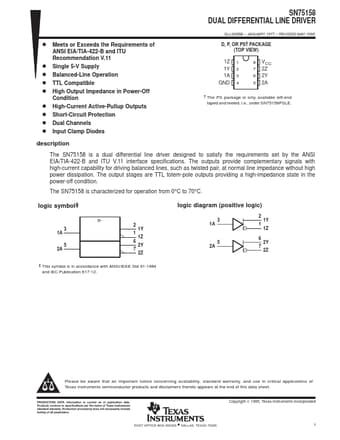

Preview of 75158 PDF
75158 Datasheet Preview Page 2 75158 Datasheet Preview Page 3

Datasheet Details

Part number:

75158

Manufacturer:

Texas Instruments ↗

File Size:

1.07 MB

Description:

Dual differential line driver.
