M35070 - SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS

Mitsubishi

Datasheet Details

Part number	M35070
Manufacturer	Mitsubishi
File Size	317.67 KB
Description	SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS
Datasheet	M35070_MitsubishiElectricSemiconductor.pdf

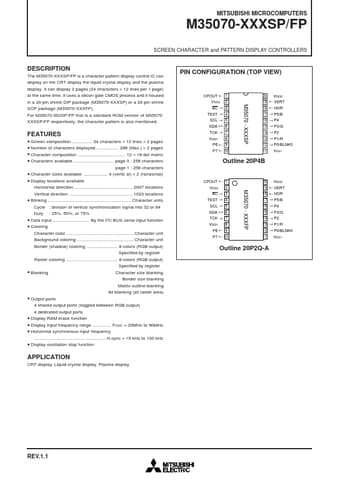

The M35070-XXXSP/FP is a character pattern display control IC can display on the CRT display the liquid crystal display and the plasma display.

Screen composition 24 characters × 12 lines × 2 pages.
Number of characters displayed 288 (Max. ) × 2 pages.
Character composition 12 × 18 dot matrix.
Characters available page 0 : 256 characters page 1 : 256 characters.
Character sizes available 4 (vertic al) × 2 (horizontal).
Display locations available Horizontal direction 2007 locations Vertical direction 1023 locations.
Blinking Character units Cycle : division of ve.
