M35054-001FP

SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS

M35054-001FP Features

* Screen composition 24 characters ✕ 10 lines, 32 characters ✕ 7 lines

* Number of characters displayed 240 (Max.)

* Character composition 12 ✕ 18 dot matrix

* Characters available 128 characters (M35054) 256 characters (M35055)

* Character sizes availabl

M35054-001FP General Description

The M35054-XXXFP and M35055-XXXFP are TV screen display control IC which can be used to display information such as number of channels, the date and messages and program schedules on the TV screen. In particular, owing to the built-in SYNC-SEP (synchronous separation) circuit, the synchronous correc.

M35054-001FP Datasheet (408.09 KB)

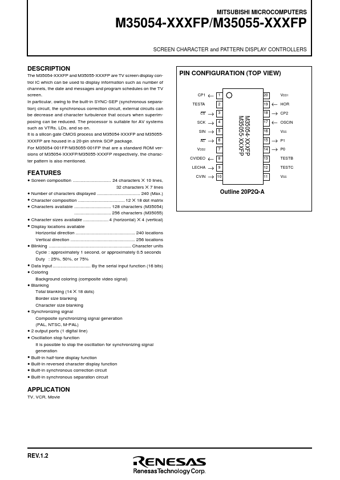

Preview of M35054-001FP PDF

Datasheet Details

Part number:

M35054-001FP

Manufacturer:

Renesas ↗

File Size:

408.09 KB

Description:

Screen character and pattern display controllers.
