M35045-001SP - SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS

Product Overview

Mitsubishi

📥 Download Datasheet

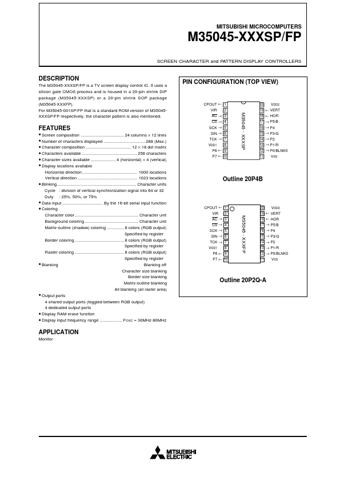

M35045-001SP SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS by Mitsubishi - Datasheet Preview — Datasheet preview – M35045-001SP

Datasheet Details

Part number	M35045-001SP
Manufacturer	Mitsubishi
File Size	567.86 KB
Description	SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS
Datasheet	M35045-001SP Datasheet
Note	This datasheet PDF includes multiple part numbers: M35045-001SP, M35045. Please refer to the document for exact specifications by model.
Additional preview pages of the M35045-001SP datasheet.

Product details

Description

The M35045-XXXSP/FP is a TV screen display control IC.

Features

Screen composition 24 columns × 12 lines.
Number of characters displayed 288 (Max. ).
Character composition 12 × 18 dot matrix.
Characters available 256 characters.
Character sizes available 4 (horizontal) × 4 (vertical).
Display locations available Horizontal direction 1000 locations Vertical direction 1023 locations.
Blinking Character units Cycle : division of vertical synchronization signal into 64 or 32 Duty : 25%, 5.
